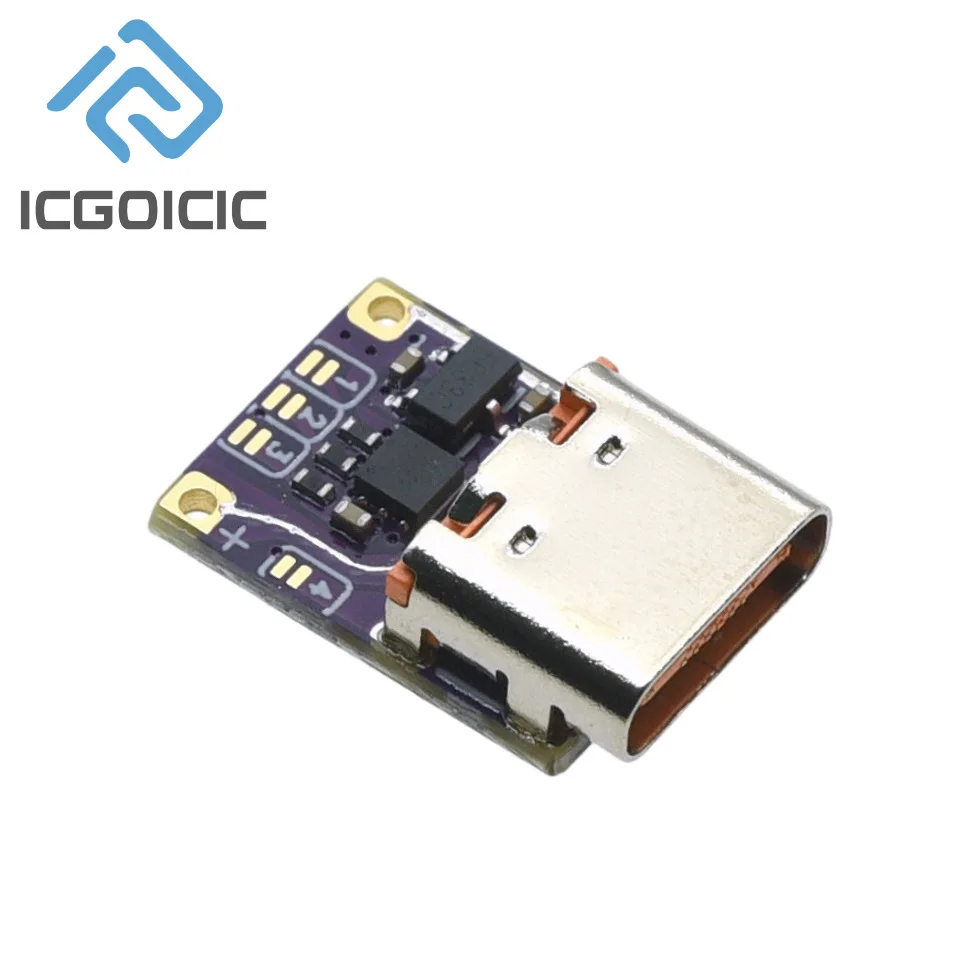

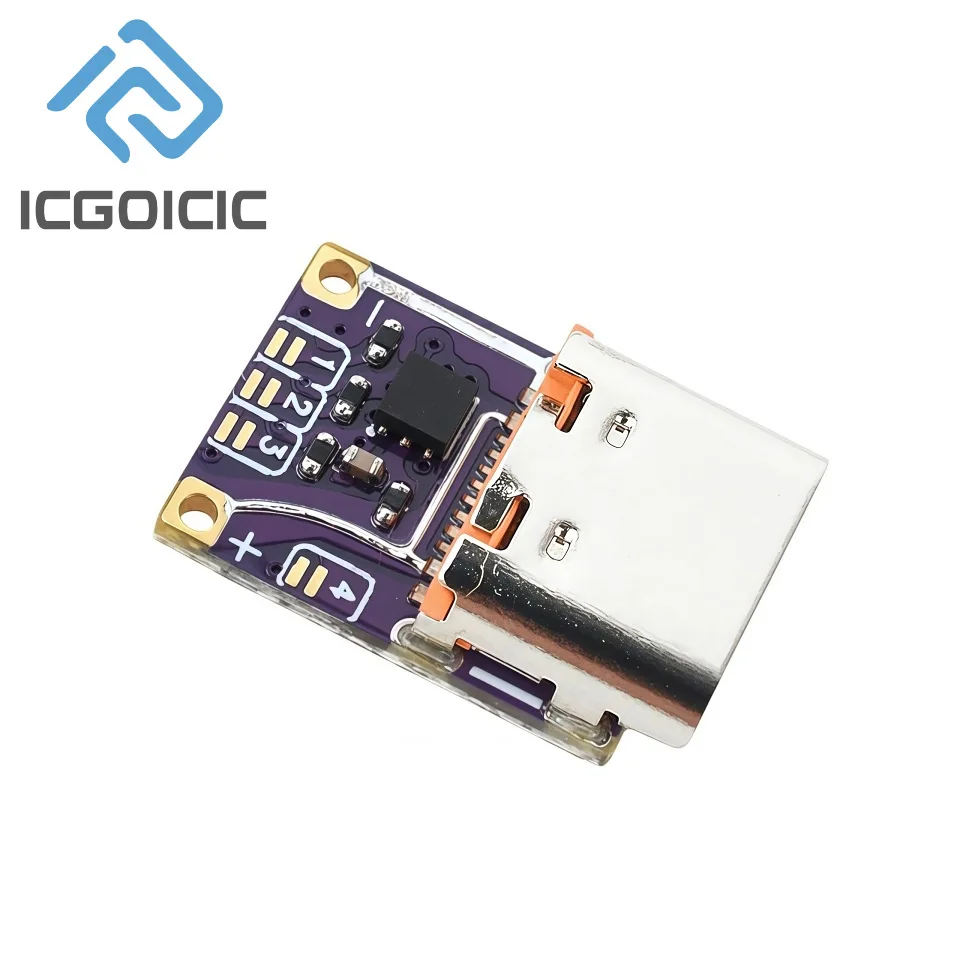

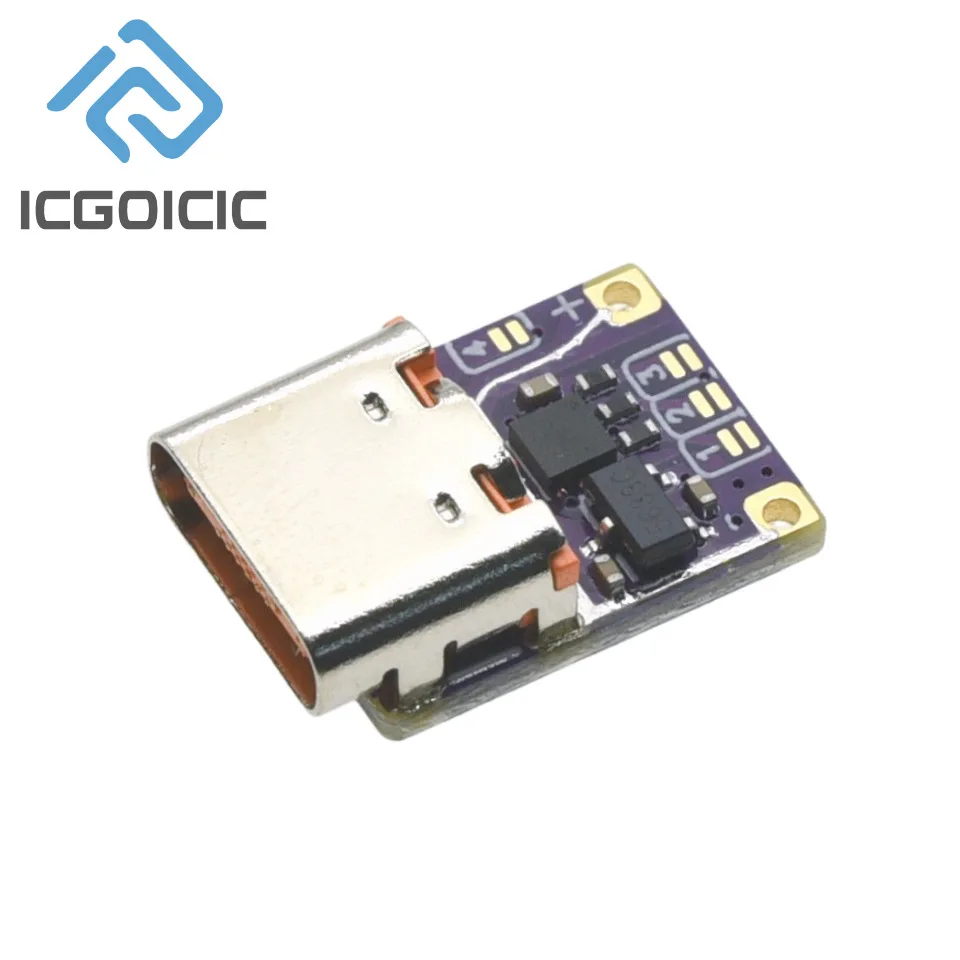

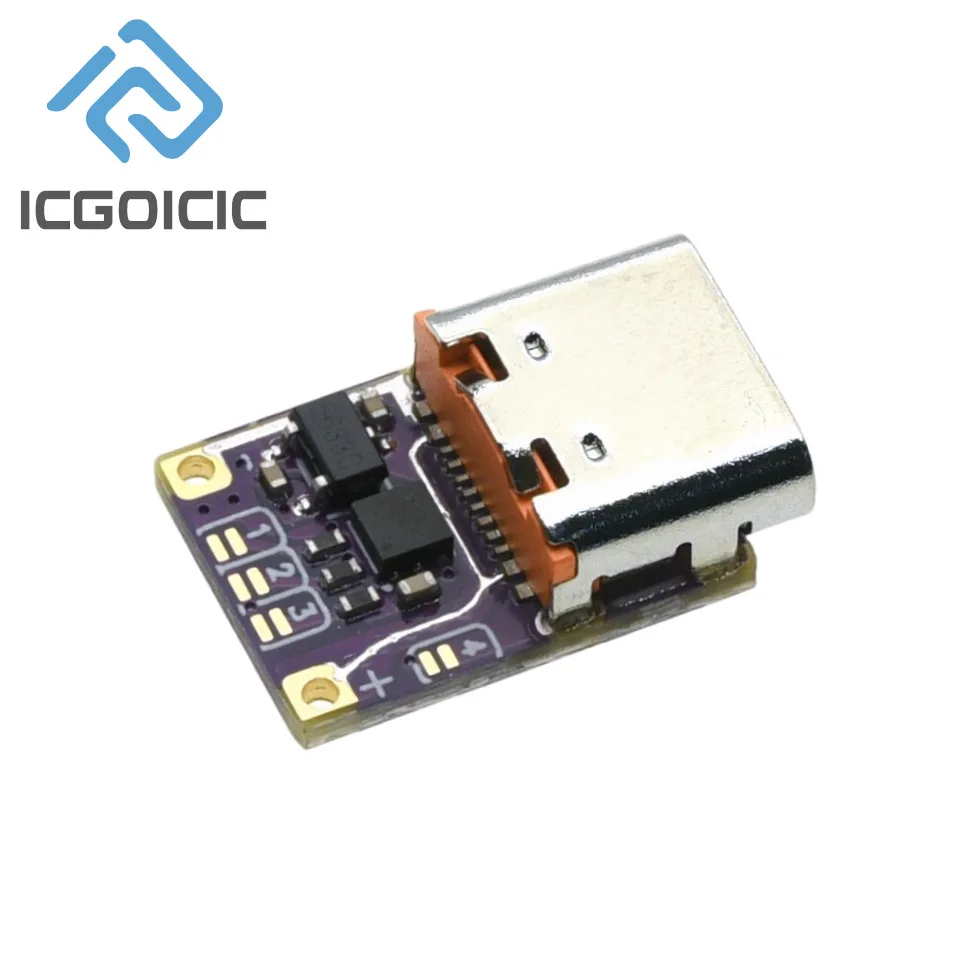

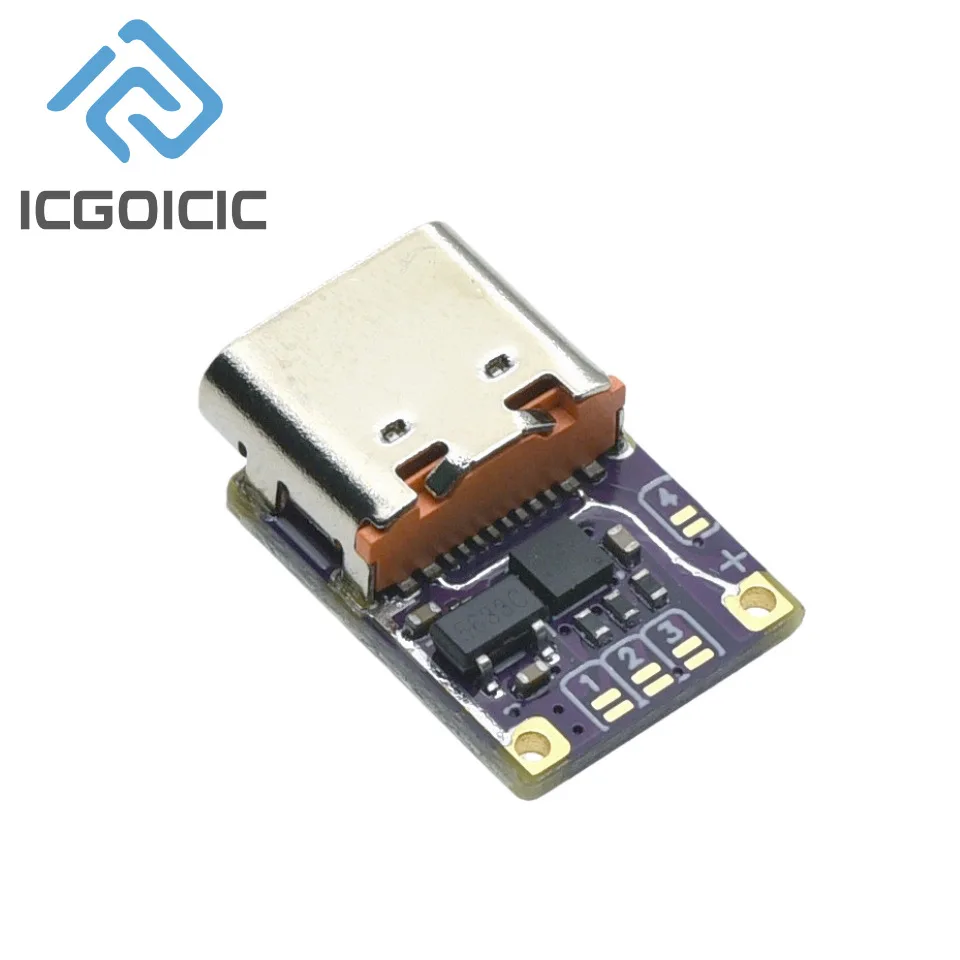

Advanced Fast Charging Module with Multi - Voltage Trigger and Type C Interface (High - voltage)

🔋 Introducing the PD3.0 PD3.1 QC3.0 Deceiver Fast Charging Module:

📦 Experience the next generation of charging technology with this ultra-compact fast charging decoy module. With its advanced design, this module ensures efficient power delivery while maintaining a sleek form factor. Created for versatility, it accommodates a wide range of applications thanks to its exceptional output specifications.

⚡ High-Current Performance: The PD3.0 PD3.1 QC3.0 module is engineered to support an impressive output current of up to 5A, making it suitable for high-performance devices that demand rapid charging capabilities. Its reliable performance is accompanied by two different versions, A and B, which can output voltage levels ranging from 5V to 48V, aligning with a vast array of charging needs.

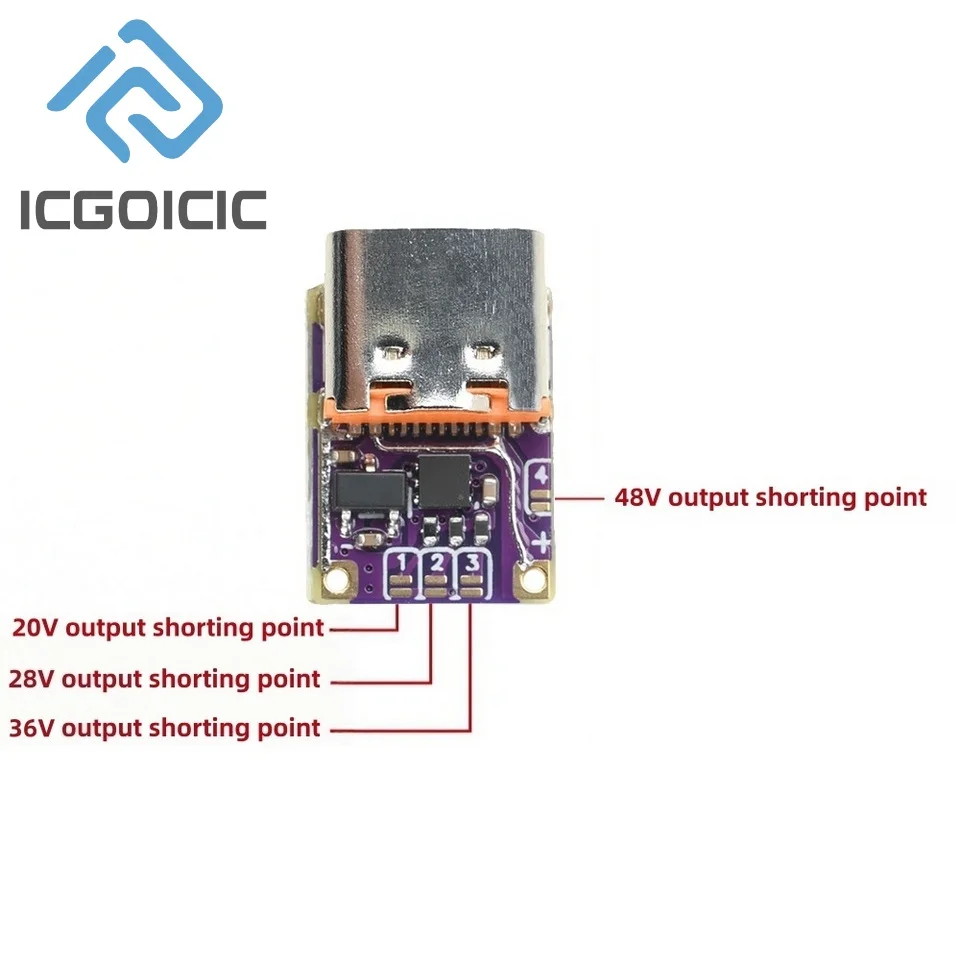

🔌 Compatibility and Versatility: This module boasts strong compatibility with multiple fast charging protocols, including PD3.1 and QC2.0. By leveraging innovative technology, it can effortlessly trick your charger into delivering the necessary voltage, resulting in enhanced charging efficiency. The design incorporates short-circuiting switching functionalities, enabling it to self-adjust to the specified voltage based on the attached device.

⚡ Downward Compatibility: One of the standout features of this module is its ability to adapt to varying power supply setups. In scenarios where the connected power supply doesn't support the desired output voltage, the module intelligently outputs the nearest available voltage level, ensuring that you’re never left without power.

Key Specifications:

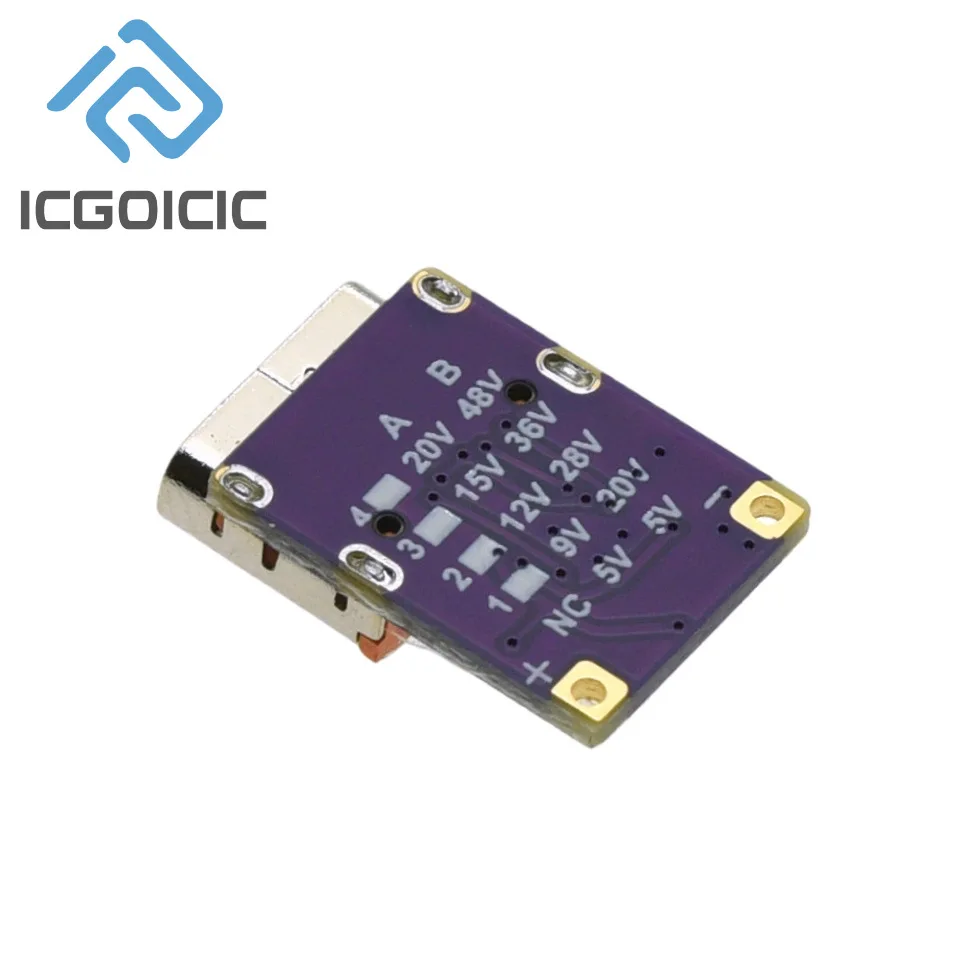

• Output Voltage Options: 5V, 9V, 12V, 15V, 20V, 28V, 36V, 48V
• Operating Temperature Range: -40 to 105°C
• Compact Dimensions: 13mm x 10mm x 4mm

📦 Voltage Regulation Insights:

⚡ For Type A: The default output voltage is set at 5V. If a 20V output is necessary but the power supply device does not support it, the module will simply not provide 20V.

💍 For Type B: The default output voltage also starts at 5V. Similarly, if 48V is required and the power supply isn't capable of delivering it, the module will not output 48V.

🧠 Please Note: This module does not have the capability to step up or step down voltage. It's essential that the power supply equipment is capable of supporting the required voltage to achieve the associated output from the module. Perfectly designed for modern charging needs, the PD3.0 PD3.1 QC3.0 Deceiver Fast Charging Module is your ultimate solution for speedy and efficient charging.
